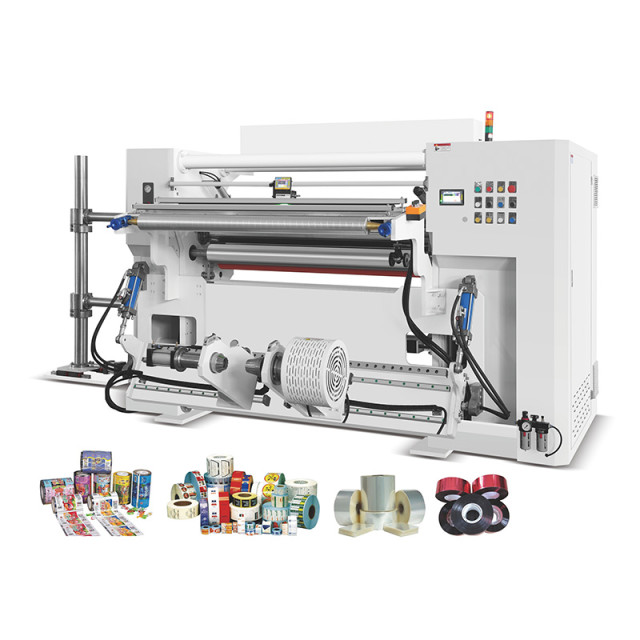

KSGWFQ-A Series High Speed Slitting Machine

This machine is suitable for all kinds of coil cutting and rewinding; Such as: all kinds of web paper (kraft paper, American paper, adhesive paper, coated paper, grease paper, packaging paper, etc.), aluminum foil, aluminized film, plastic film (PET\OPP\PE\PVC\ Insulation paper), and other kinds of coil cutting and rewinding.

Performances and features:

1、The machine adopts three servo motor synchronous control, automatic constant tension, center surface coiling mode;

2、The machine adopts frequency conversion speed regulation, keep the stable operation in the acceleration;

3、automatic meter, alarm and other functions;

4、 Winding adopts A, B air expansion shaft structure, easy loading and unloading operation;

5、Static imitation edge correction method is adopted for unwinding;

6、Straight or round knife type longitudinal cutting, waste side automatic discharge device;

7、 Shaftless automatic feeding frame structure

Detailed Parameters:

Model

KSGWFQ-A-1100mm

KSGWFQ-A-1300mm

KSGWFQ-A-1600mm

Slitting speed

50-300m/min

50-300m/min

50-300m/min

Max.material width

1100mm

1300mm

1600mm

Unwinding Dia.

1000mm

1000mm

1000mm

Rewinding Dia.

600mm

600mm

600mm

Correct way

EPC

Control way

PLC

Total power(Kw)

10

13

15

Weight(T)

3

3.5

4.2

Size(m)

3500×4000×1800mm

3500×4200×1800mm

3500×4500×1800mm
