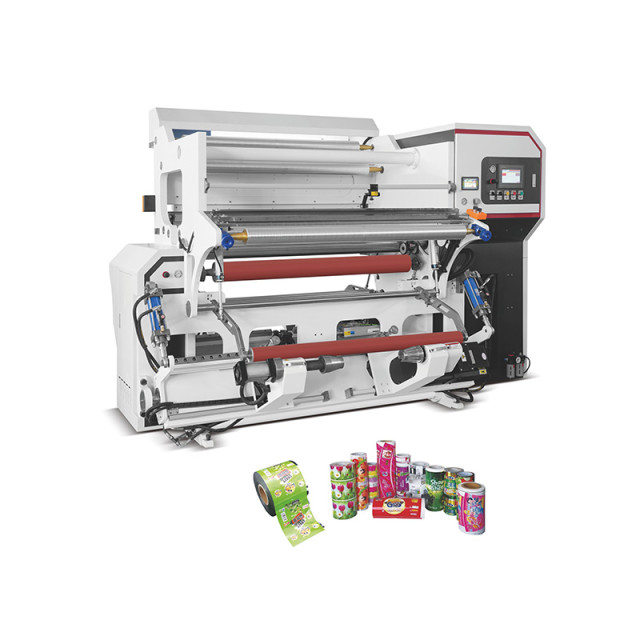

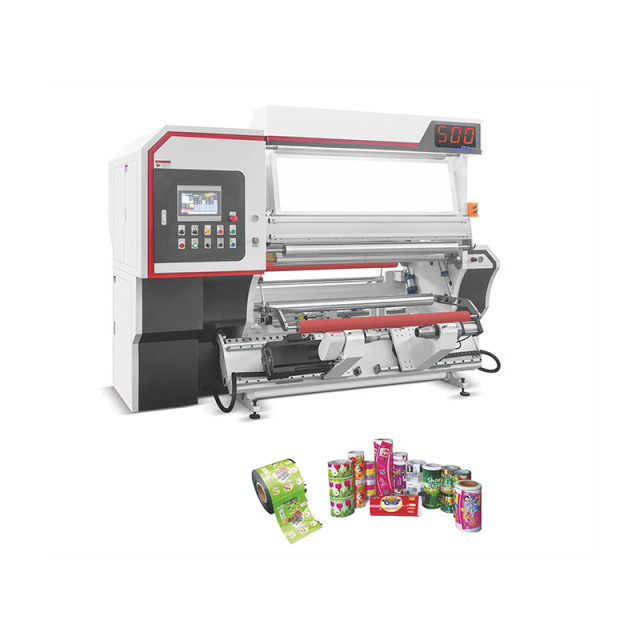

KSGJ-A series automatic high-speed inspection machine

Application
The machine is suitable for the post press inspection of various roll materials such as BOPP, pet, PVC, PE, aluminum foil, aluminized film, web paper and composite film, and the elimination of various phenomena such as missing printing and deinking in the production process.

Performance and features:

  1. The electric braking system of the machine is centrally controlled by PLC. According to the requirements of the cutting process, the cutting parameters are set by the touch screen, and the liquid crystal screen displays the control working state. The control system has the functions of starting buffer, stopping anti loosening, meter counting and length fixing, and the operation is very simple;
  2. The raw material loading and unloading adopts air roof type shaftless clamping and hydraulic lifting structure;
  3. The unwinding tension control adopts the full-automatic tension control system to keep the unwinding tension constant, and the taper control can also be realized according to the process requirements;
  4. The "photoelectric deviation correction" system can be used to ensure the correct position of the base material and automatic tracking and setting out;
  5. The main traction and winding are respectively controlled by servo motor and driven by frequency conversion. The winding tension is automatically controlled by PLC according to the parameters set according to the slitting process requirements and the change of winding diameter;
  6. Full automatic camera tracking, alarm immediately in case of any problem;
  7. The rewind adopts air top type shaftless clamping and hydraulic lifting structure.

Main technical parameters:

Model KSGJ-A-1100mm KSGJ-A-1300mm KSGJ-A-1600mm

Detection speed

50-400m/min(optional:500-600m/min)

Maximum material width

1100mm

1300mm

1600mm

Unwinding diameter

800mm

800mm

800mm

Rewind diameter

800mm

800mm

800mm

Edge Correction method

Photoelectric or ultrasonic tracking

Tension control mode

PLC control

Total power (kw)

18

22

26

Machine weight (T)

2.8

3

3.6

Machine size (m)

2.2*2.8*1.7

2.2*3.0*1.7

2.2*3.3*1.7
