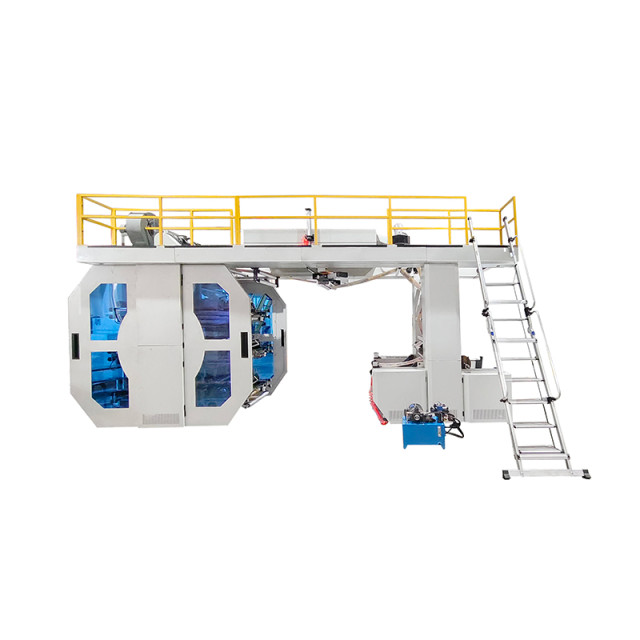

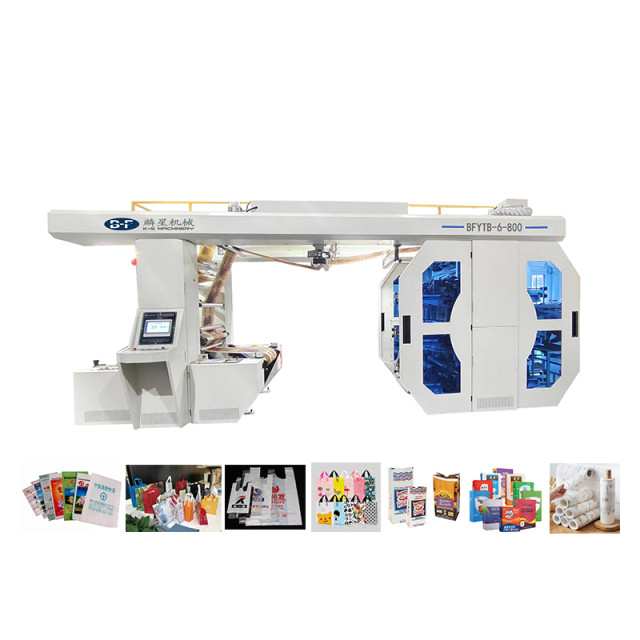

BFYTB Series Stack Type Flexo-graphic Printing Machine

Suitable material:
Roll paper, plastic film, Non woven fabric, PP woven sack, Thin film and all kind of soft package roll material.

Performance Feature:

1. Unwind unit adopts single-station or double-station structure;3"air shaft feeding; Automatic EPC and constant tension control;With refueling warning, break material stop device.

2. The main motor is controlled by frequency conversion, and the whole machine is driven by high-precision synchronous belt or servo motor.

3. The printing unit adopts ceramic mesh roller for ink transfer, single blade or chamber doctor blade, automatic ink supply; Anilox roller and plate roller automatic  separating after stop; The independent motor drives the anilox roller to prevent ink from solidifying on the surface and blocking the hole.

4. Rewinding pressure is controlled by pneumatic components;

5. Rewind unit adopt single-station or double-station structure; 3 "air shaft; Electric motor drive, with closed - loop tension control and material - breaking stop device.

6. Independent drying system: electric heating drying (adjustable temperature)

7. The whole machine is centrally controlled by PLC system; Touch screen input and display the working state; automatic meter counting and multi - point speed regulation.

Main Technical Parameter:

Model

BFYTB-600mm

BFYTB-800mm

BFYTB-1200mm

BFYTB-1600mm

Max Material Width

600mm

800mm

1200mm

1600mm

Max Printing width

570mm

770mm

1170mm

1570mm

Printing length

285-1000mm

285-1000mm

285-1000mm

285-1000mm

Printing color

2-10 color

Mechanical speed

50-150m/min

Printing speed

50-130m/min

Printing unit Composition

Ceramic anilox roller, Chamber doctor blade, Ink pump, Printing cylinder,  Pressure roller

Voltage

3p 380v 50hz

Weight

8000kg

8500kg

9000kg

9500kg

Dimension

5.8x2x4.2m

5.8x2.2x4.2m

5.8x2.4x4.2m

5.8x2.6x4.2m

Optional devices

1.Video inspection

2.Corona treatment

3.Slitting knife

4.Automatic non -stop unwind&rewind

5.Online device

Online Inquiry

Related Products

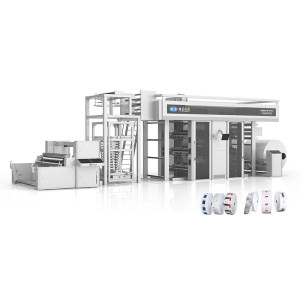

KSCD-SYC-A Series Stack Type Flexo Printing Embossing Online Machine

KSCD-SYC-A Series Stack Type Flexo Printing Embossing Online Machine

Substrate:
FFS bag, woven bag, plastic film, paper plastic bag, valve bag, putty bag and other flexible packaging roll materials.
Characteristic:
1. The whole machine is centrally controlled by PC system, 360 degree electric color registration (full-automatic computer automatic color registration is optional), high-definition color still picture monitoring, which is convenient for the observation of printing quality;
2. The unwinding unit adopts single station structure; 3 ″ + 6 ″ shaftless feeding mode; Automatic deviation correction and constant tension control; Equipped with refueling warning and paper break shutdown device;
3. The whole machine is driven by high-precision servo motor。

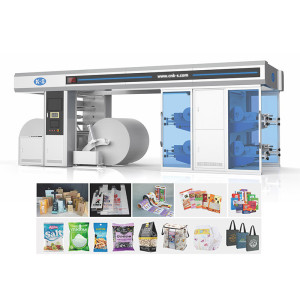

KSCD-S-A Series Servo-controlled Stack Type Flexo-graphic Printing Machine

KSCD-S-A Series Servo-controlled Stack Type Flexo-graphic Printing Machine

Characteristic:
1. The whole machine is centrally controlled by PC system, fully automatic computer automatic color registration, high-definition color still picture monitoring, which is convenient for the observation of printing quality;
2. The unwinding unit adopts single station or double station structure; 3 ″ inflatable air shaft loading mode; Automatic deviation correction and constant tension control; Equipped with refueling warning and paper break shutdown device;
3. The whole machine is driven by high-precision servo motor;

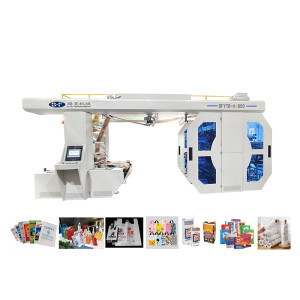

BFYTB Series Stack Type Flexo-graphic Printing Machine
