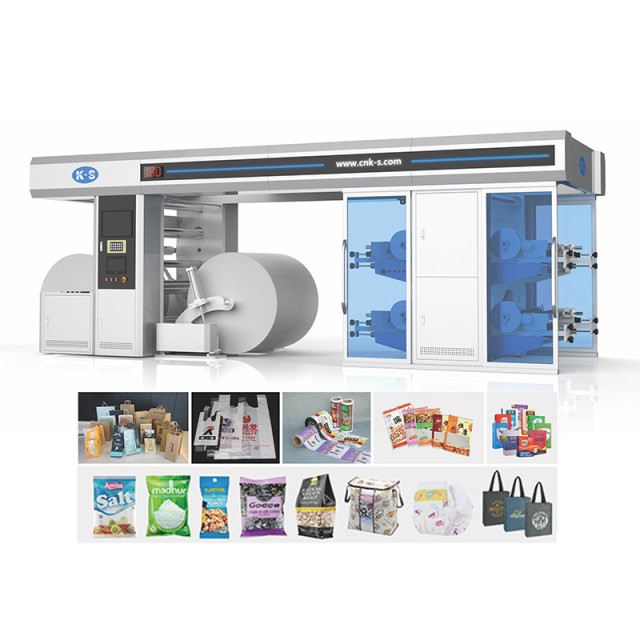

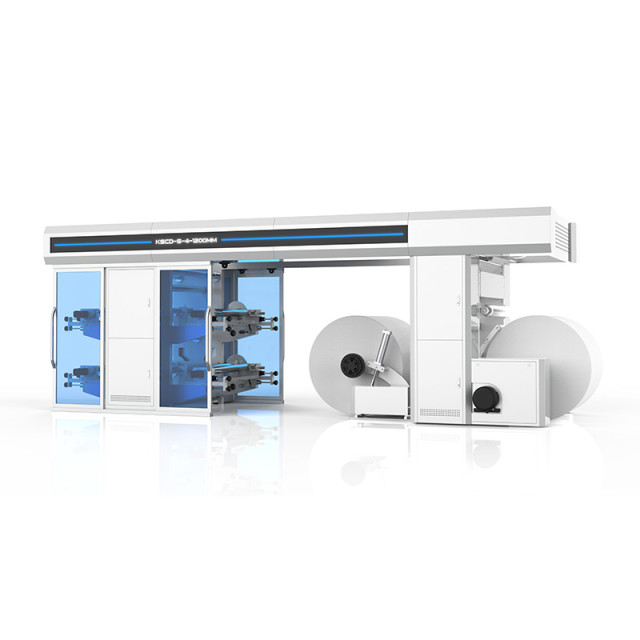

KSCD-S-A Series Servo-controlled Stack Type Flexo-graphic Printing Machine

KSCD-S-A Series Servo-controlled Stack Type Flexo-graphic Printing Machine

Characteristic：
1. The whole machine is centrally controlled by PC system, fully automatic computer automatic color registration, high-definition color still picture monitoring, which is convenient for the observation of printing quality;
2. The unwinding unit adopts single station or double station structure; 3 ″ inflatable air shaft loading mode; Automatic deviation correction and constant tension control; Equipped with refueling warning and paper break shutdown device;
3. The whole machine is driven by high-precision servo motor;
Online Inquiry Contact Us

Detailed description：

This machine is a flexible photosensitive resin plate as the base material, through the roller ink, liquid ink printing substrate. The machine is composed of feeding unit, tension control unit, traction feeding unit, printing unit, drying unit, winding traction unit and rewinding unit and other main units, the whole machine is driven by servo, PC system centralized control; The machine has reasonable structure, fast printing speed and simple operation. It is the ideal flexible packaging equipment in China at present.

Substrate：

Plastic film, roll paper, non-woven fabric, woven bag, thin skin and other flexible packaging roll materials

Main technical parameters

Model

KSCD-S-A-650mm

KSCD-S-A-1050mm

KSCD-S-A-1250mm

KSCD-S-A-1650mm

Material width

600mm

1000mm

1200mm

1600mm

Printing width

570mm

970mm

1170mm

1570mm

Printing length

280-1000mm

Printing color

4 -10 color（Optional positive and negative printing and sleeve device）

Material diameter

Ф600 or Ф1000mm

Mechanical speed

50-220m/min

Printing speed

50-200m/min

Registration accuracy

-0.12mm

Voltage

3P380V

weight

Depends on the model

Size (L * w * h)

Depends on the model

Optional unit

1. Fully automatic non-stop unwind&rewind

2. Anilox roller printing plate roller sleeve device

3. Pressure regulation: servo motor control

4. On line slitting device: round knife or straight knife

5. UV drying unit: LED or mercury lamp

6. Corona device: eliminate surface static electricity and prevent ink from falling off

7. Electrostatic elimination or dust removal unit: eliminate surface static electricity

8. Connecting device: it can be used together with other machines
