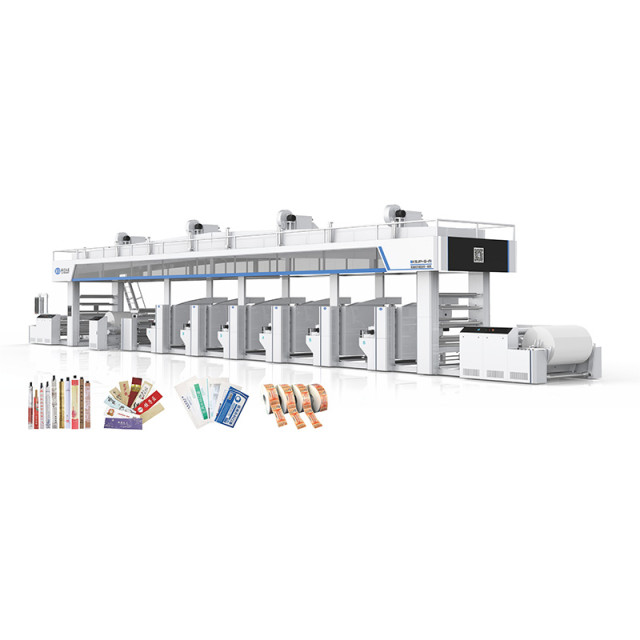

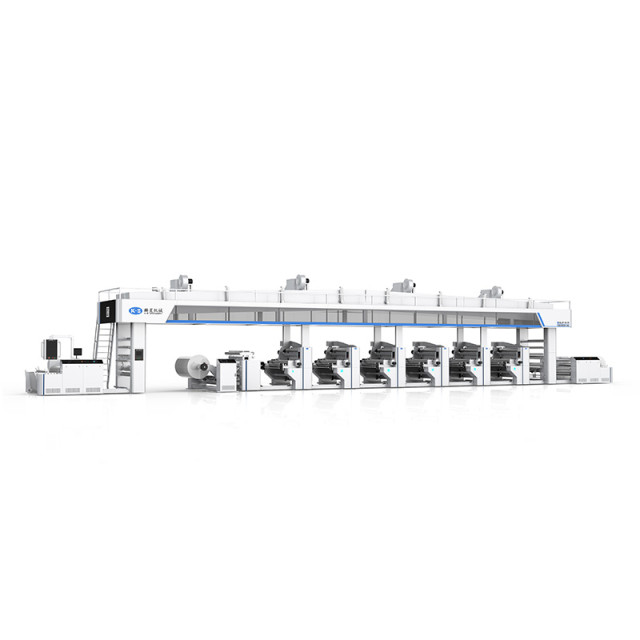

KSJP-ST-A Series 2/4/6/8/10 Colors Unit Type Flexo Printing And Reverse Coating/Gluing Online Machine

1.Function: multi-color continuous fine printing, at the same time to achieve reverse gluing
2.Features: accurate color matching, stable operation, model customization
3.Application: mask packaging, pharmaceutical paper packaging, food paper packaging

Application:

  Paper cup, paper bag, carton pre-printing, food packaging, tobacco and alcohol packaging, pharmaceutical packaging, daily
necessities, non-woven fabric, plastic film, industrial products, and other flexible packaging materials

necessities, non-woven fabric, plastic film, industrial products, and other flexible packaging materials Main features:

1. Drive mode: servo system drive
2. Color printing method: automatic computer overprinting device
3. Detection system: color printing effect monitoring system
4. Advance and retreat system:
plate roller and anilo roller are electrically controlled, which can achieve fast advance and retreat
5. Inking mode: fullyenclosed scraper inking system
6. Tension control: multi-section tension control, floating roller detection, automatic control
7.Applicable ink: water-based ink, solvent ink and UV ink
8. Drying device: extended drying system is adopted for color group drying
9. Dry heat source: electricity, steam, thermal oil, natural gas, etc
10. Discharge correction: adopt high precision deviation correction device
11. Feeding control: automatic control with pneumatic brake
12. Rewind control: controlled by frequency
conversion motor

Main Technical Parameter:

Model

KSJP-ST-6850

KSJP-ST-61050

KSJP-ST-61350

KSJP-S6-61650

Max Material Width

800mm

1000mm

1300mm

1600mm

Max Printing width

780mm

980mm

1280mm

1580mm

Printing length

320-1200mm

320-1200mm

320-1200mm

320-1200mm

Printing color

1-12 color

Mechanical speed

20-220m/min

Printing speed

20-200m/min

Printing unit Composition

Ceramic anilox roller, Chamber doctor blade, Ink pump, Printing cylinder,  Pressure roller

Voltage

3p 380v 50hz

Weight

25000kg

30000kg

35000kg

40000kg

Dimension

20*2.1*1.5m

20*2.3*1.5m

20*2.5*1.5m

20*2.7*1.5m

Optional devices

1..Corona treatment

2.Automatic non-stop unwind&rewind1.Online device
